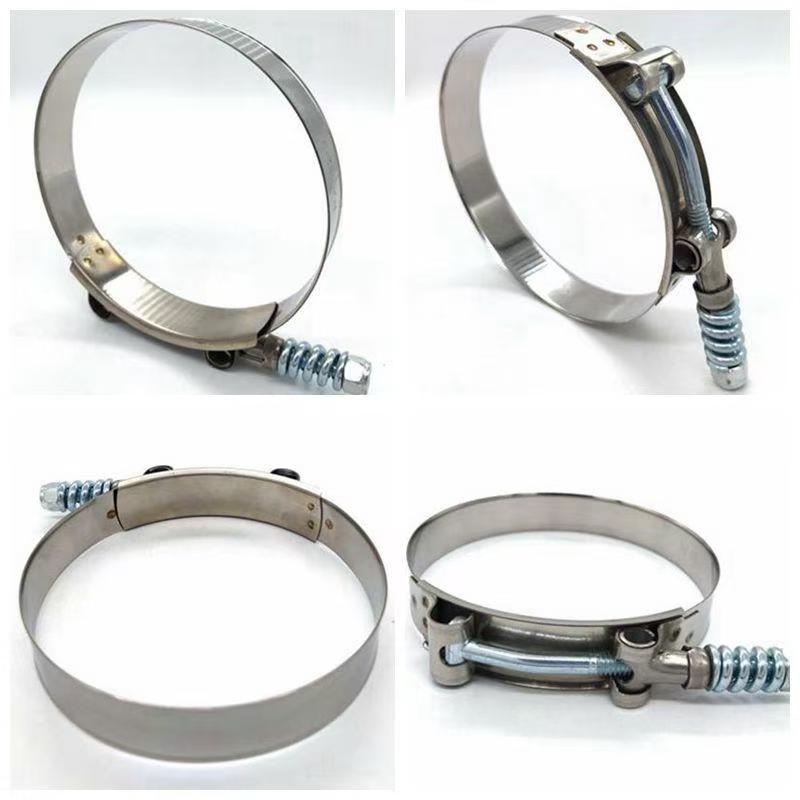

T-shaped spring clamp

Strong bolt clamps provide high-performance sealing solutions in applications with temperature and pressure fluctuations. The spring binding clip automatically compensates for the thermal expansion and contraction of the hose or joint connection to maintain uniform sealing pressure and ensure positive and reliable sealing. Constant tension design helps prevent loose connections and leaks caused by temperature fluctuations, especially in critical applications. The T-shaped spring clamp is designed for harsh working conditions with frequent temperature and pressure fluctuations. Through the automatic compensation function of the spring, it continuously adapts to the thermal expansion and contraction of the pipeline and the cold flow deformation of the hose, maintaining uniform and stable sealing pressure throughout the process, and achieving long-term leak free fastening.

Core advantages of the product

Constant tension automatic compensation: Maintain a constant clamping force under high and low temperature, and thermal cycling environments, without looseness or leakage

No secondary maintenance required: The spring adapts to expansion and contraction, eliminating the need for regular tightening and reducing maintenance costs

High strength and durable structure: resistant to vibration, impact, high temperature, and corrosion, suitable for extreme scenarios such as turbines and exhausts

Rounded steel strip design: effectively protects silicone tubing and hoses, avoiding cuts and wear

Self locking nut configuration: earthquake resistant and anti loosening, safer and more reliable operation

Material Structure

Steel strip: 304 and other series stainless steel

Bolt, spring, self-locking nut: galvanized carbon steel

Material combinations can be customized according to requirements to meet special environmental needs

Typical application areas

Turbocharging intercooling system (silicone tubing)

Engine cooling pipeline

Boost air, intake system

Industrial hoses with frequent thermal cycles

Key pipelines such as automobiles, heavy trucks, ships, and construction machinery

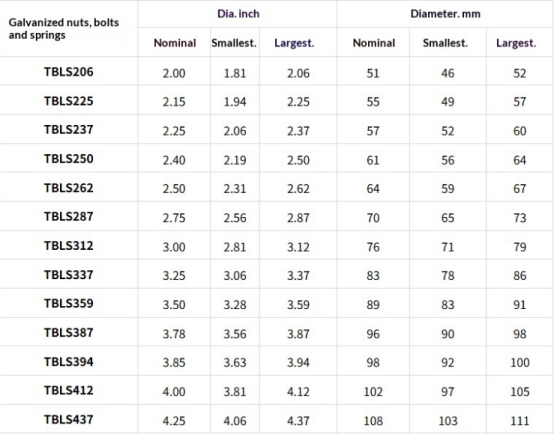

Specifications and Customization

Comprehensive coverage of specifications, from small diameters to large diameters

Support customization: adjustment range, material, packaging method

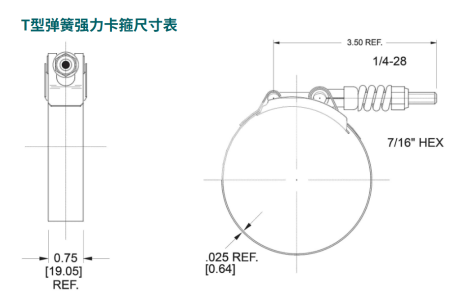

PDF specification sheet can be downloaded to view the complete size table

More special sizes available for consultation and customization

Advantages and characteristics

Automatic diameter adjustment helps maintain constant tension at extremely low or high temperatures and during thermal cycling processes

The spring-loaded design provides constant strap tension and tight fit, without the need for adjustment.

Durable and long-lasting design that can withstand thermal stress and provide high levels of resistance to vibration, impact, temperature, and corrosion

The rounded corner design reduces the risk of fixture damage to clamped parts, including hoses in critical applications.

304 series stainless steel strap with galvanized self-locking nut, bolt, and spring

Customizable according to needs (adjustment range/material combination, etc.) and packaging methods
